Thermocouple Cable Type R/S

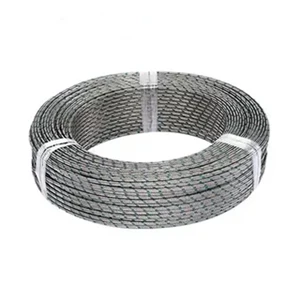

Thermocouple Compensating Lead Wire – Type WPR-H, Size 4/0.65 x 2 mm (200 Meters)
Product Description:
The WPR-H Type Thermocouple Compensating Lead Wire is specially designed to connect platinum thermocouples (Type R/S) to temperature measurement instruments such as controllers, indicators, or recorders. Built with 4 strands of 0.65 mm wire per conductor (2 conductors total), this cable ensures accurate signal transmission over long distances.
With low resistance and a stable electromotive force (EMF), it minimizes signal loss and maintains temperature accuracy in high-temperature industrial environments.
Technical Specifications:
-
Cable Type: WPR-H (for Type R/S Thermocouples)
-
Conductor Size: 4/0.65 x 2 mm
-
Resistance: 0.089 Ohm/meter
-
EMF @100°C: 0.645 mV
-
Length per Roll: 200 meters
-
Function: Thermocouple signal extension/compensation
Key Features:
-
High accuracy for platinum thermocouple (R/S) signal transmission
-
Excellent heat resistance and mechanical durability
-
Low signal interference over long cable runs
-
Designed for use in harsh industrial environments
